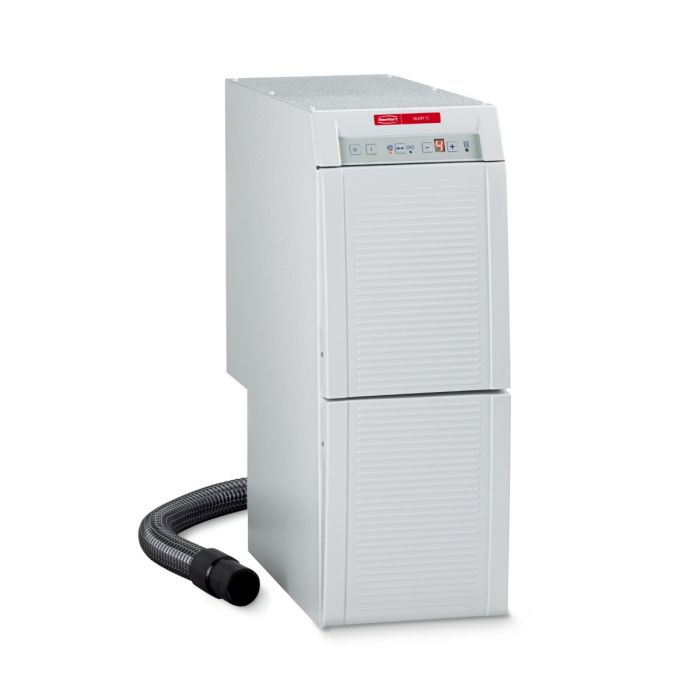

Renfert - Silent TS - Single Workbench Extraction (220-240 V) - (1 pc)

Renfert

Silent TS

Single Workbench Extraction

220-240 V

1 pc

High performance extraction unit with durable collector motor and double filter system.

Advantages:

     • Low operating noise of max. 63 dB(A).

     • 3x longer service life in comparison to conventional collector motors (1000 operating hours guaranteed).

     • High level of health protection due to double filter system, optional H/HEPA filter available.

Details:

     • Working without interruption due to an uncomplicated motor change within minutes.

     • Effective dust reduction using a high volume flow (approx. 3300 l/min.).

Scope of delivery:

     • Silent TS

     • 3 m of suction hose

     • Special dust bag

     • Fine-filter

     • Universal hose connection adapter

Technical data:

     • Permissible mains voltage: 220–240 V

     • Permissible mains frequency: 50/60 Hz

     • Nominal voltage: 230 V

     • Suction turbine power: 1400 W (230 V)

     • Volume flow (max.): 3300 l/min (230 V) - 1.94 ft³/s (230 V)

     • Max. depression: 200 hPa - 2.9 psi

     • Motor technology: Collector

     • Filter technology: Filter bag

     • Filter surface fine filter, approx.: 0,8 m² - 1240 in²

     • Filter quality: Class M according to EN 60335-2-69

     • Max. permitted connected load of the plug-in socket: 2000 W (230 V)

     • Total connected power: 3400 W (230 V)

     • Mains input fuse: 2 x 15 A(T)

     • Number of suction hoses: 1

     • Sound pressure level (LpA) (at max. volume flow): 63 dB(A)

     • Weight (empty): ~26 kg - ~57 lbs

     • Dimensions (W x H x D):224 x 591 x 564 mm - 8.8 x 23.3 x 22.2"

     • Ø suction fittings interior: 32 mm - 1.26 "

     • Ø suction fittings exterior: 40 mm - 1.57 "

     • Fill level dust collector: ~7.5 l - ~2 gal

Exploded view
