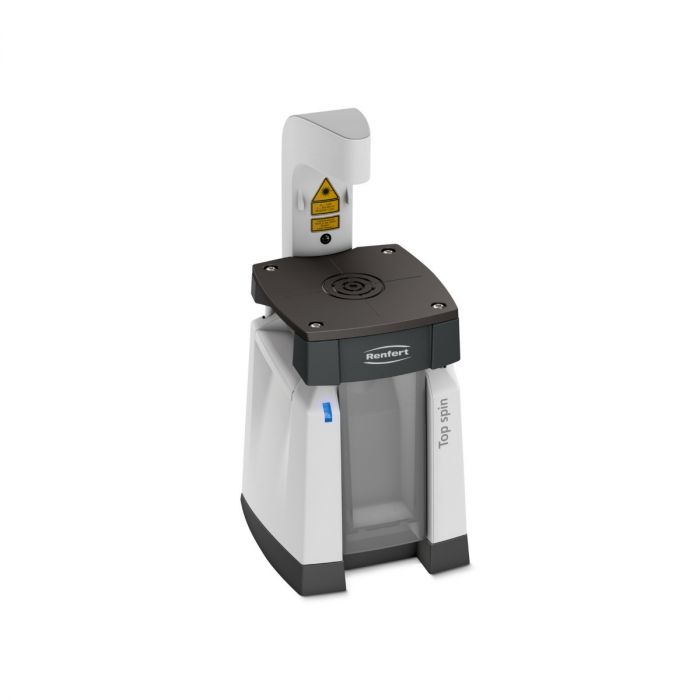

Renfert - Top Spin - Pin Drilling Unit (220-240 V) - (1 pc)

Pas en stock
En stock
SKU:
18400000
Prix Spécial 1 130,32 € Prix normal 1 332,03 €

Renfert

Top Spin

Pin Drilling Unit

220-240 V

1 pc

The Top spin pin drilling unit offers additional precision, safety, and durability. Its exceptional concentric precision and special drill technology make it unique.

Advantages:

     • Drilling precision of ≤ 0.01 mm thanks to sophisticated shaft-bearing technology.

     • High-torque motor with no power loss when drilling (8000 rpm).

     • Extremely easy drilling with no resistance thanks to a special drill geometry.

Details:

     • Two unit positions and different gripping options for fixing the dental arch in position enable an individual, ergonomic working posture.

     • The individual, infinitely variable drill-depth setting of 0–20 mm (0–0.79") also allows drilling for pin systems with resin plates.

     • With adjustment it is also possible to use drills with a longer shank.

     • Compact design with a high degree of stability.

Scope of delivery:

     • Top spin 220-240 V

     • 1x Stepped pin drill bit large

Technical data:

     • Permissible mains voltage: 220–240 V

     • Permissible mains frequency: 50/60 Hz

     • Power consumption (during drilling): 12 W

     • Power consumption (Stand by mode): 0,7 W

     • Laser-Class: 2

     • Rotational speed: 8000 1/min

     • Dimensions (W x H x D): 153 x 330 x 175 mm - 6.0 x 13.0 x 6.9"

     • Permissible drill shaft diameter Ø: 3 mm (± 0.03 mm)

     • Permissible drill length: 34–46 mm - 1.34–1.81 "

     • Weight: ~4 kg - ~8.8 lbs
