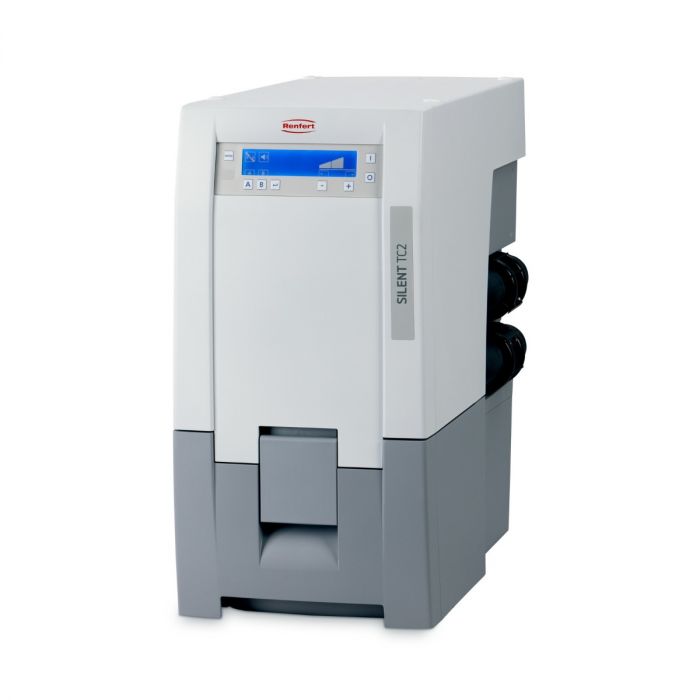

Renfert - Silent TC2 - Two Workbench Extraction (220-240 V) - (1 pc)

Pas en stock
En stock
SKU:
29360000
Prix Spécial 2 381,17 € Prix normal 2 806,09 €

Renfert

Silent TC2

Two Workbench Extraction

220-240 V

1 pc

Powerful, bag-free extraction unit with two independently controlled suction ports, automatic filter cleaning and long-lasting collector motor.

Advantages:

     • Consistent suction power thanks to automatic re-adjustment.

     • 3x longer service life in comparison to conventional collector motors (1000 operating hours guaranteed).

     • Low operating noise of max. 55 dB (A).

Details:

     • No follow-up costs due to bag-free dust collection.

     • Working without interruption due to an uncomplicated motor change within minutes.

     • Effective dust reduction using a high volume flow (approx. 4 000 l/min.).

Scope of delivery:

     • Silent TC2

     • Quick Start Guide

     • Compressed air tube (fixed on the unit)

     • Connection set

     • 2 pinch valves with suction supports (already installed)

     • Suction hose 4 m

     • 4 end mufflers

Technical data:

     • Permissible mains voltage: 220–240 V

     • Nominal voltage: 230 V

     • Suction turbine power: 850 W (230 V)

     • Volume flow (max.): 3980 l/min - 2.34 ft³/s

     • Max. depression: 281 hPa - 4.1 psi

     • Motor technology: Collector

     • Filter technology: Bag- free

     • Filter quality: Class M according to EN 60335-2-69

     • Max. permitted connected load of the plug-in socket: 2000 W (230 V)

     • Min./ max. connection pressure external: 4,5–8 bar - 65–116 psi

     • Total connected power: 2850 W (230 V)

     • Mains input fuse: 15 A(T)

     • Number of suction hoses: 2

     • Sound pressure level (LpA): 55 dB(A)

     • Weight (empty): ~23 kg - ~50.7 lbs

     • Dimensions (W x H x D): 285 x 535 x 540 mm - 11,2 x 21,1 x 21,2"

     • Ø suction fittings interior: 45 mm - 1.77 "

     • Ø suction fittings exterior: 50 mm - 1.97 "

     • Fill level dust collector: ~7 l - ~1.85 gal

Exploded view
