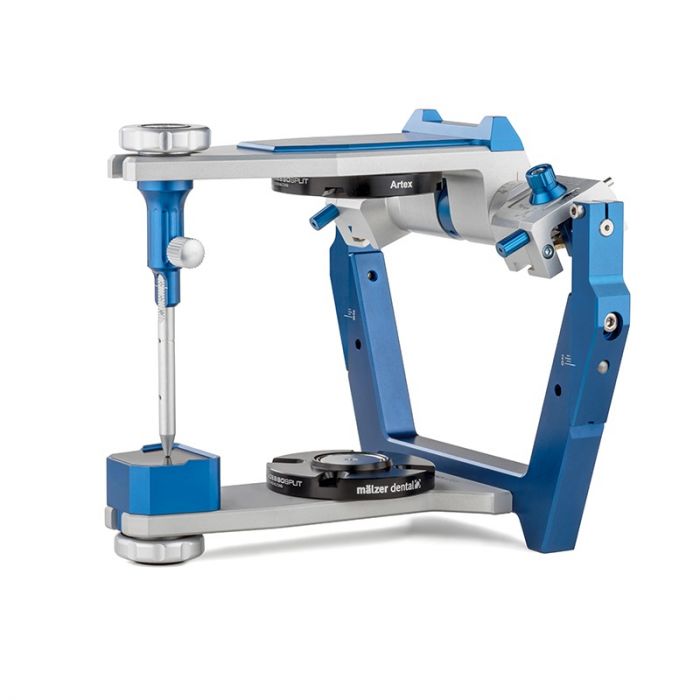

Mälzer - CORSOART® - AC-Line - Model BKR - Mounting Height 126 mm - Blue - (1 pc)

Mälzer

CORSOART®

AC-Line

Model BKR

Mounting Height 126 mm

Fully adjustable

Supplied without magnetic plate system

Blue

1 pc

Technical specifications:

     • Design Arcon

     • Bennet angle 0-25° adjustable

     • Centric quick lock

     • Anterior guide pin adjustable from -5 to +10 mm

     • Bonwill's triangle setting via quick-click

     • Anterior guide table 0°

     • Removable tilt support

     • Condylar path inclination adjustable from -15° to +60°

     • Immediate side shift function (ISS) from 0 - 1.2 mm per side

     • Protrusion 0 - 6 mm

     • Retrusion 0 - 2 mm

     • Distraction 0 - 3 mm

All CORSOART® A- and AC-Line articulators are also usable with the Splitex® plate set.
