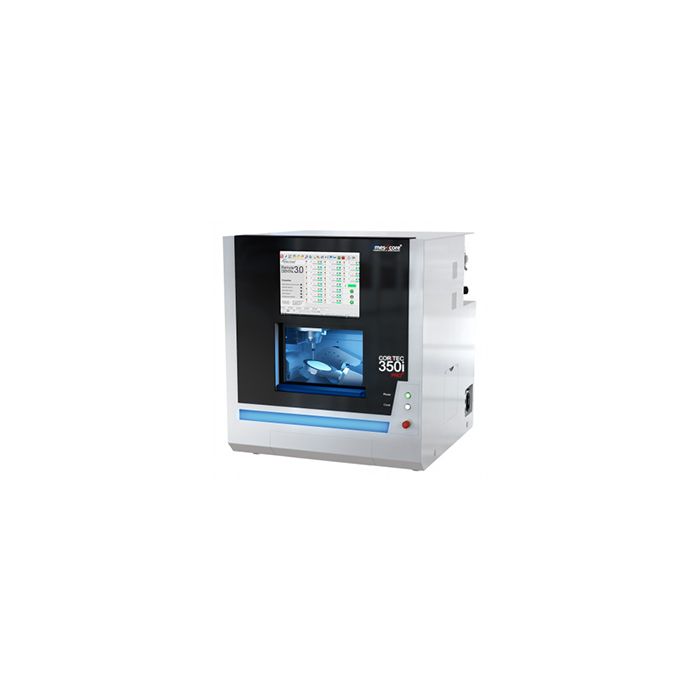

Imes-Icore - CORiTEC 350i PRO ION - DRY

Imes-Icore

CORiTEC 350i PRO ION

DRY

     • 5 axes processing (3+2 and simultaneous)

     • high dynamic AC-Servomotors with absolute encoder

     • mono block base from polymer concrete

     • integrated zero-point-clamping-system

     • including 1 blank holder

     • dry processing

     • 15” touchscreen and PC integrated

     • integrated cooling liquid tank and circle

     • automatic tool changing system for 20 tools

     • suitable for processing of Zirconiumoxide, Wax, PMMA, resins

     • milling-angles up to 30 degrees with the standard blank-holder

     • rotation-axis 360 degrees, pivot-axis up to 115 degrees

     • high shine chassis with LED illumination

     • high-performance HF spindle up to 60.000 rpm

     • automatic tool-changing-system with 20 tool positions

     • dustcover for tool-changer

     • collet 6mm shaft

     • integrated precise tool measurement sensor

     • temperature-compensation for consistent high precision also at variations in environmental temperature

     • integrated suction hose incl. adapter

     • including ionisator and milling chamber outlet

     • including CNC-control software CORiTEC Remote DENTAL 3.0

     • Weight approx. 205 kg

     • Machine dimensions: 758 x 790 x 857 mm (WxDxH)
